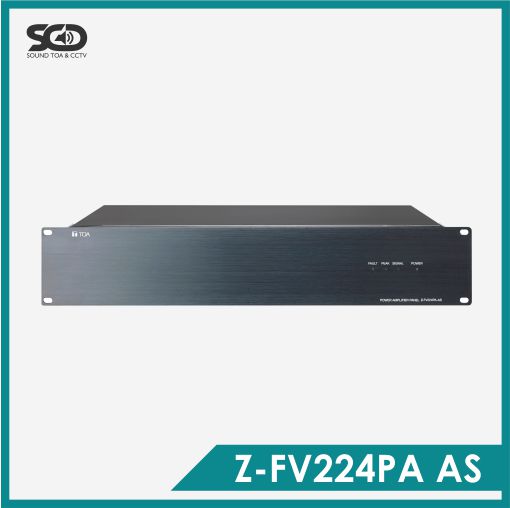

TOA Z-FV224PA-AS Emergency System Power Amplifier (240 Watt)

Rp0.00

Kelengkapan Produk :

  1. Produk
  2. Cover/ Kardus
  3. Instruksi Manual
  4. Kartu Garansi Resmi TOA Service Center
  5. Pelindung Produk (Didalam Dus)

Benefit :

  • Layanan Pemesanan Konsultasi Gratis
  • Harga TOA sewaktu-waktu ada kenaikan
  • Pesan cepat, via WhatsApp Bussiness

Description

Power SourceAC: 220 – 230 V AC, 50/60 Hz
DC: 24 V DC (operating range: 19.5 – 27 V)
M4 screw terminal, distance between barriers: 12mm
Power ConsumptionAC at rated output: 565 W (condition: AC230V)
AC at no signal: 22 W
IEC60065: 245 W
Current ConsumptionDC at rated output: 15 A (condition: DC27V)
DC at no signal: 0.5 A
IEC60065: 5.8 A
Rated Output240 W
Input2 inputs, 0 dB*, 20 kΩ, balanced, removable terminal plug (3 pins)
Input module VP-200VX (Option)
Output Impedance21 Ω (70 V), 42 Ω (100 V)
Speaker OutputM4 screw terminal, distance between barriers : 12 mm
Control OutputFault ouput :   Make : Normal, Break : Error or Power Off
S/N RatioOver 60 dB
Total Harmonic DistortionUnder 1% (1 kHz, 1/3 rated output)
Frequency Response80 Hz – 15 kHz, ±3 dB, 1 kHz
VentilationFan cooling
LED IndicatorPower (Green), Signal (Green), Peak (Red), Fault (Red) (Light: Overheat)
Operating Temperature0 ℃ to +40 ℃
Operating HumidityUnder 90% RH (no condensation)
FinishPanel: Aluminum, black, alumite
Dimensions482 (W) × 88.4 (H) × 337.2 (D) mm
Weight13.3 kg
AccessoryRemovable terminal plug (3 pins) x 3, Instruction manual x 1
OptionVP-200VX input module

Additional information

Weight13.3 kg
Dimensions0.337 × 0.482 × 0.88 cm
